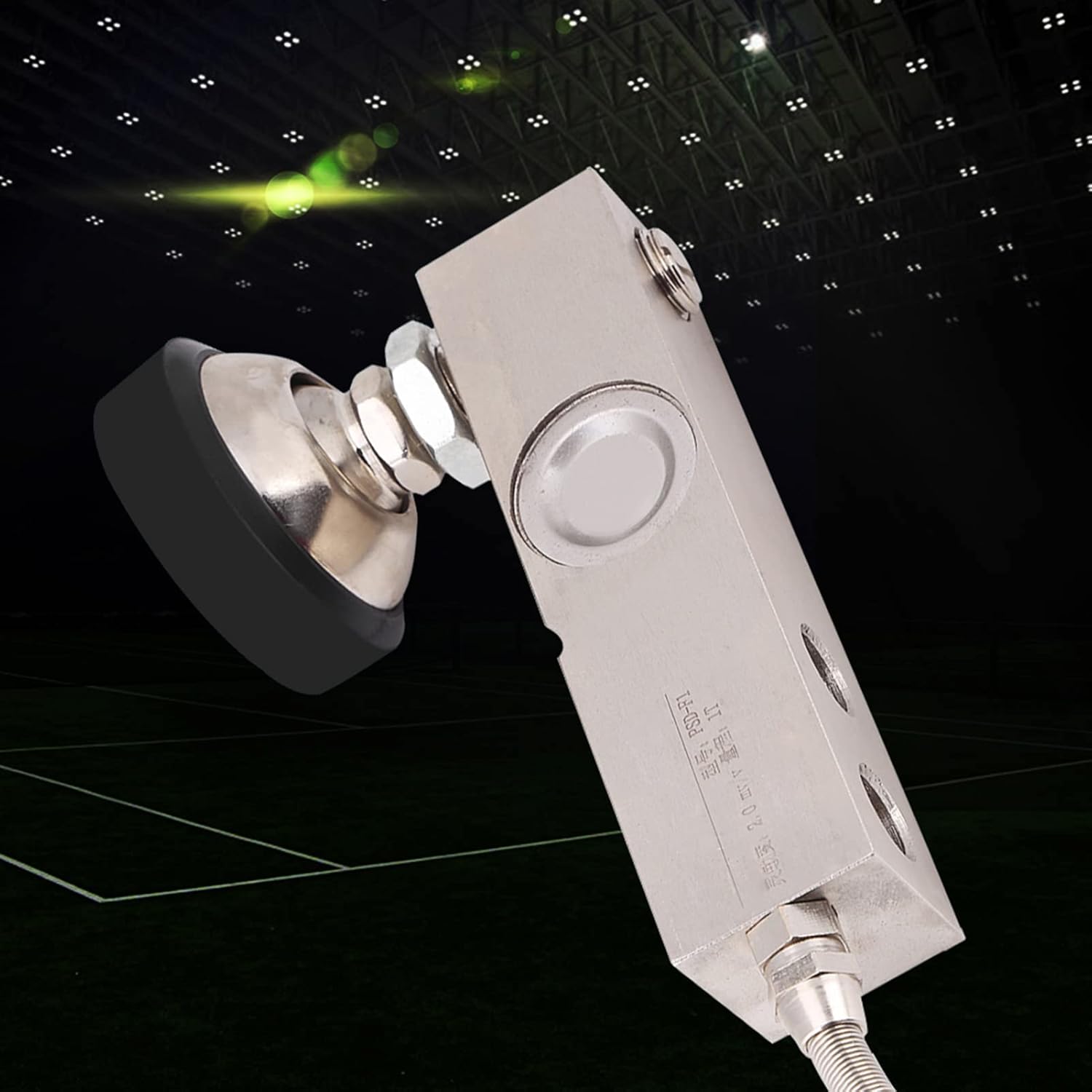

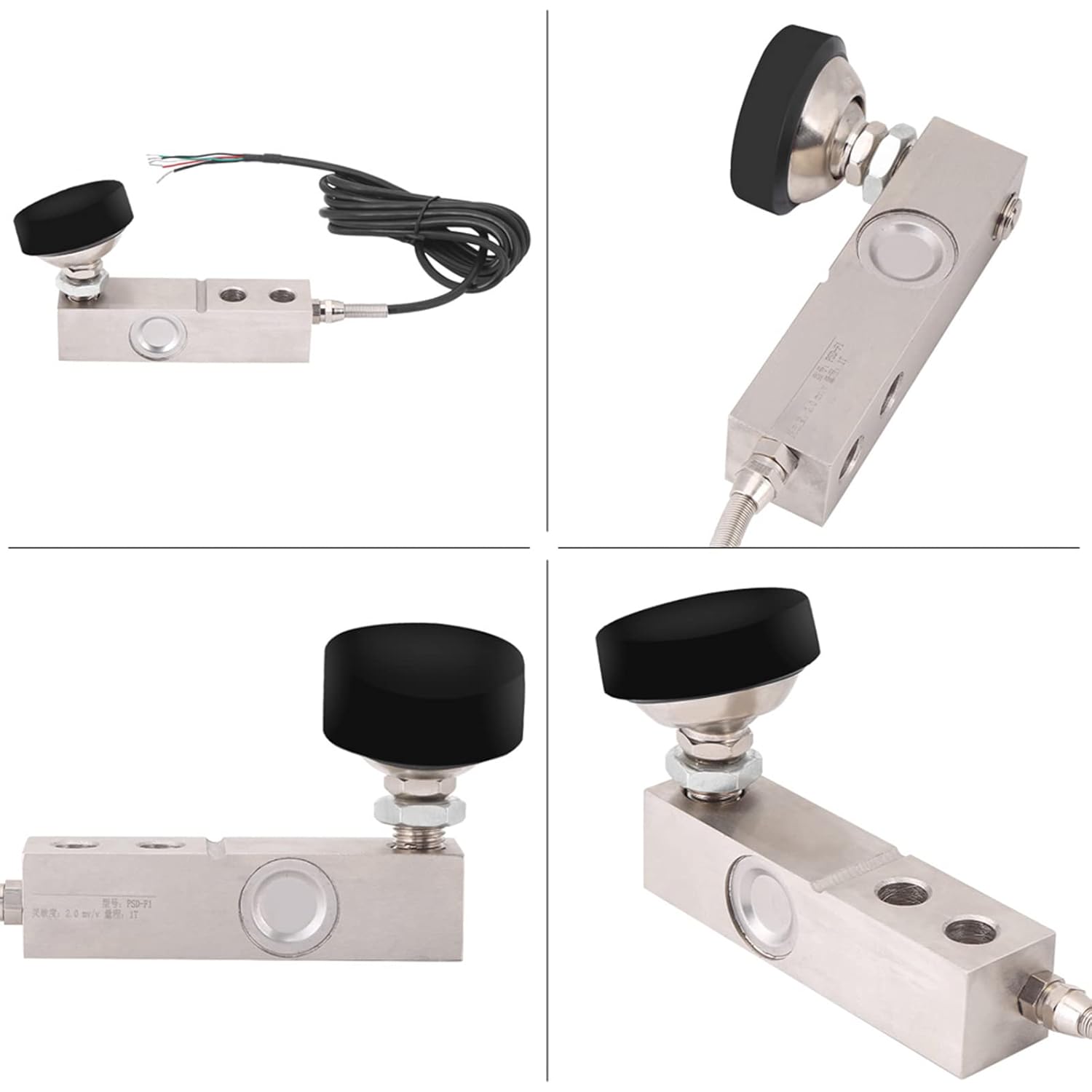

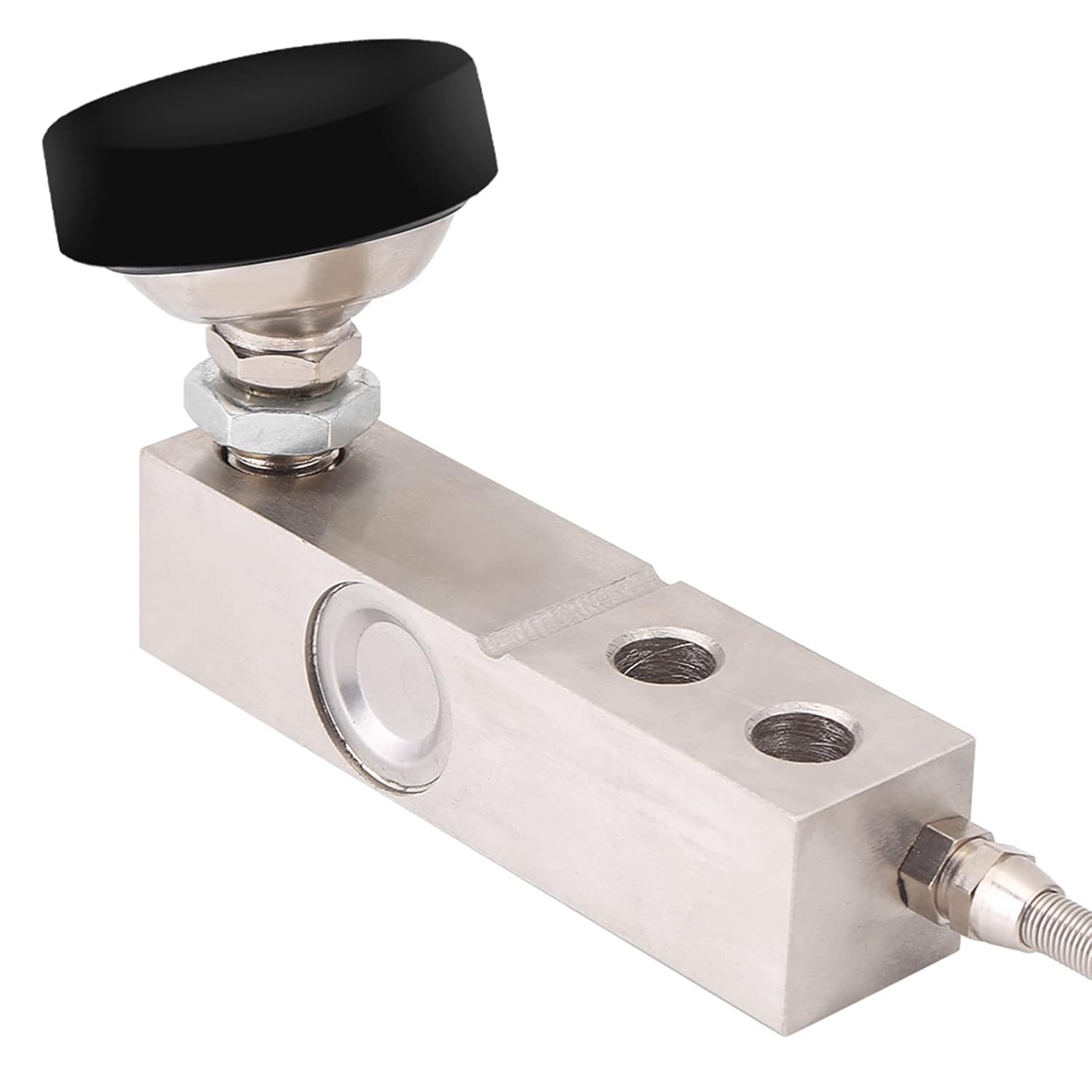

Shear Beam Load Cell Sensor 1000Kg, Sensor para Bascula Load Cell Scale Sensor, Load Cell Ighing Sensor for Electronic Scale, 4 Shielded Cable Ip67 Repeatability ±0.02 (1000Kg)

Descriptions: This shear beam load cell sensor adopts alloy steel material, in use, features high precision, high sensitivity, and high stability. Applied to electronic scale, track scale, automobile weighing equipment.Specifications: Model:PSD - F1Type: weighing Material: metal level: IP67 Rated Load: 0-1000kg Linearity: ±0.02)%F.S.) Delay: ±0.02)%F.S.) Repeatability: ±0.02)%F.S.) Sensitivity:2.0 ±0.002% Excitation voltage: 10V DC/ACInput impedance: 380 Ω±20Ω Output impedance: 350 Ω±5Ω Weight:1252gThe wiring mode:Input +: Red Input -: BlackOutput +: GreenOutput -: whitePackage Included: 1 x Weighing Sensor

• Quality Material: The shear beam load cell sensor is constructed from alloy steel, ensuring lasting use and
• Superior : With welding seal treatment, the sensor enjoys an IP67 level that safeguards it against dust and water.
• Versatile Application: The sensor can be successfully integrated into an electronic scale, track scale, and automobile weighing equipment.
• 4-Core Shielded Cable: The weighing sensor includes a 4-Core shielded cable for effective and minimized interference.
• Unique Design: The unique bearing blind hole design sets it apart from other sensors and makes installation easier.
